SPECIAL PURPOSE TRANSFORMERS
Engineered Solutions for Unique Power Applications
When Standard Transformers Are Not Enough
Every industry has unique power requirements. Whether it is handling extreme current levels in furnace applications, providing galvanic isolation for sensitive equipment, or offering operational flexibility through multi-voltage configurations, special purpose transformers demand advanced engineering expertise and precision manufacturing.
Tecksons specializes in the design and manufacture of customized transformer solutions tailored to the specific operational, environmental, and performance requirements of industrial, utility, renewable energy, infrastructure, and export projects.
With decades of transformer manufacturing experience and a strong focus on innovation, we provide reliable solutions for the most demanding applications.
Our Special Purpose Transformer Range
Furnace Transformers
Designed for high-current and severe-duty applications in steel, ferro-alloy, foundry, and metallurgical industries.
Features
- High current design
- Robust short-circuit withstand capability
- Low impedance options
- Heavy-duty bus bar arrangements
- Multiple voltage tapping arrangements
- Enhanced thermal performance
- Designed for cyclic loading conditions
Applications
- Arc Furnaces
- Induction Furnaces
- Ladle Furnaces
- Smelting Plants
- Metal Processing Industries
Isolation Transformers
Designed to provide electrical isolation between power source and load, enhancing safety, reducing electrical noise, and protecting sensitive equipment.
Features
- Complete galvanic isolation
- Reduced common mode noise
- Improved equipment protection
- Enhanced operational safety
- Low leakage current design
- High reliability construction
Applications
- Hospitals and Healthcare Facilities
- Data Centres
- Telecom Infrastructure
- Critical Process Industries
- Sensitive Electronic Equipment
Dual Voltage Transformers
Engineered to operate on two primary voltage systems, offering flexibility for varying utility networks and project requirements.
Features
- Multiple operating voltages
- Site-selectable voltage configuration
- Reduced inventory requirements
- Flexible project deployment
- Optimized for export applications
Typical Configurations
- 11 / 22 kV
- 13.8 / 34.5 kV
- 11 / 33 kV
- Custom voltage combinations
Applications
- Rental Power Projects
- Temporary Installations
- Export Markets
- Utility Networks with Variable Supply Voltages

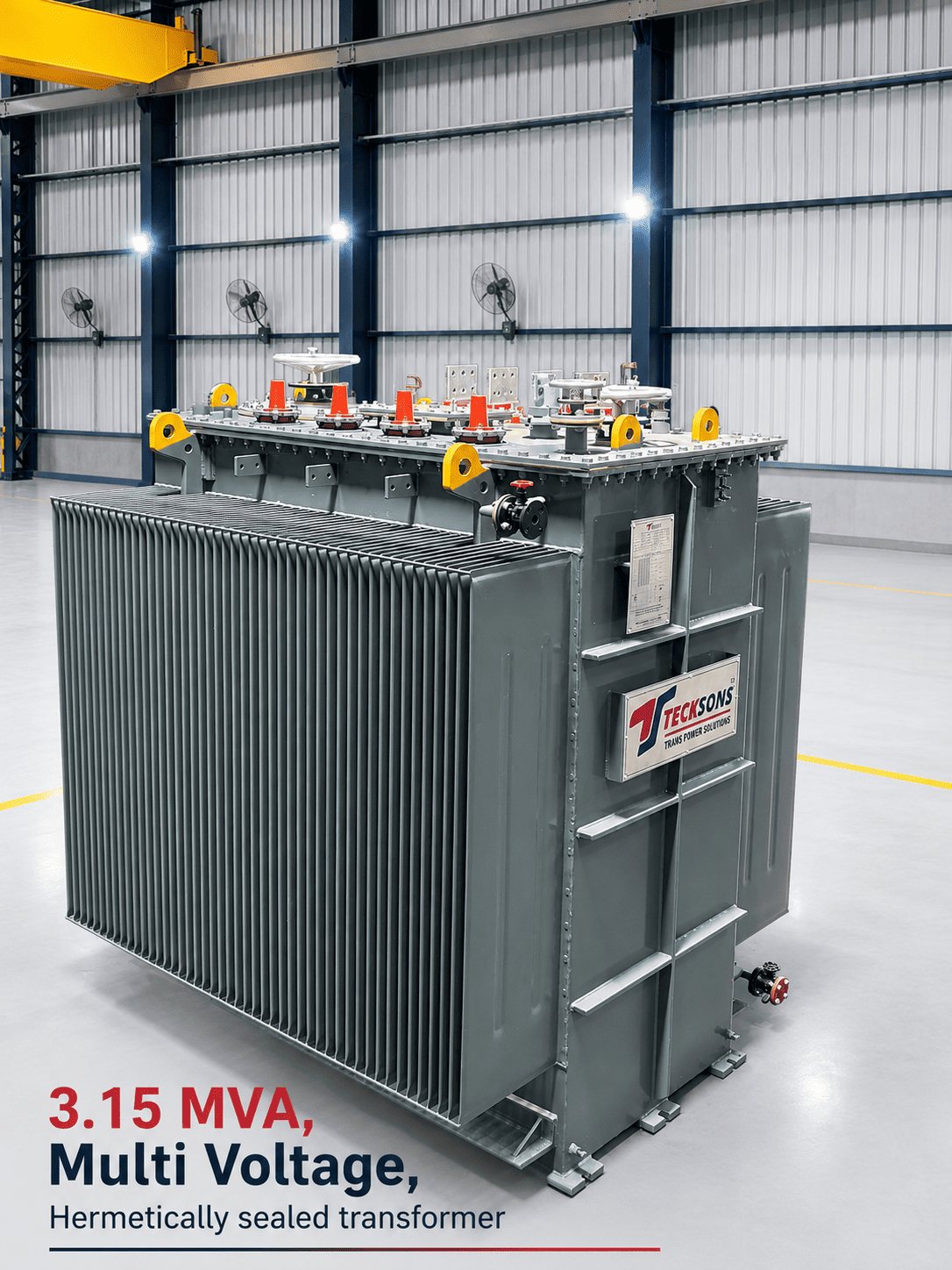

Multi Voltage Transformers
Designed for maximum operational flexibility where transformers may be required to operate across multiple voltage systems.
Features
- Three or more HV voltage options
- Wide operating flexibility
- Reduced project logistics complexity
- Ideal for rental fleets
- Optimized for international deployment
Typical Configurations
- 11 / 22 / 33 kV
- 13.8 / 22 / 34.5 kV
- Custom multi-voltage designs
Applications
- Rental Power Companies
- Mobile Substations
- Emergency Power Systems
- International Project Deployment
- Utility Infrastructure Projects
Renewable Energy Special Transformers
Custom-engineered transformers for emerging renewable energy applications.
Solutions Include
- Inverter Duty Transformers (IDT)
- Battery Energy Storage System (BESS) Transformers
- Solar Auxiliary Transformers
- Grid Integration Transformers
- Renewable Power Evacuation Transformers
Converter & Rectifier Transformers
Designed for applications involving AC-DC conversion and industrial power electronics.
Applications
- Electrolysis Plants
- Chemical Industries
- Mining Operations
- Railway Systems
- Battery Charging Systems
Engineering Capabilities
Custom Design Expertise
Every special purpose transformer is designed considering:
- Load Characteristics
- Harmonic Conditions
- Environmental Factors
- Grid Requirements
- Short Circuit Levels
- Thermal Performance
- Transportation Constraints
- Future Expansion Requirements
Technical Capabilities
| Parameter | Capability |
|---|---|
| Rating Range | Up to 20 MVA and Above |
| Voltage Class | Up to 36 kV |
| Frequency | 50 Hz / 60 Hz |
| Cooling | ONAN / ONAF / OFAF |
| Winding Material | Copper / Aluminium |
| Insulation Class | As per Application |
| Standards | IEC / IS / ANSI / Customer Specifications |
Advanced Manufacturing Infrastructure
Tecksons continues to invest in modern manufacturing technologies to support increasingly sophisticated transformer designs.
Key Manufacturing Strengths
Advanced LV Foil Winding Facility
- Superior winding quality
- Enhanced short-circuit strength
- Improved thermal characteristics
- Consistent manufacturing precision
Ensuring:
PLC Controlled Bus Bar Processing System
State-of-the-art Bus Bar Cutting, Punching and Bending Machine enabling:
- Precision conductor fabrication
- Improved dimensional accuracy
- Consistent product quality
- Faster manufacturing cycles
Modern Transformer Manufacturing Facility
- Core Cutting & Assembly
- Coil Manufacturing
- Vacuum Drying Processes
- Oil Processing Systems
- Complete Testing Facilities
Export-Oriented Solutions
Our special purpose transformers are designed to meet the technical requirements of international markets including:
Middle East & Gulf Region
- Saudi Arabia
- UAE
- Qatar
- Oman
- Kuwait
- Bahrain
Other International Markets
- Africa
- South Asia
- Emerging Infrastructure Markets
Special attention is given to:
- High ambient temperature operation
- Harsh environmental conditions
- Utility-specific requirements
- International compliance standards
Why Choose Tecksons?
Engineering Beyond Standard Designs
While standard transformers serve most applications, special purpose transformers require deep engineering expertise, manufacturing flexibility, and a thorough understanding of application-specific challenges.
Tecksons combines all three.
From furnace transformers handling extreme electrical stresses to sophisticated multi-voltage transformers designed for international deployment, we provide customized power solutions that deliver reliability, efficiency, and long-term performance.
Customized Transformer Solutions for Specialized Applications
Furnace Transformers • Isolation Transformers • Dual Voltage Transformers • Multi Voltage Transformers • Converter Transformers • Renewable Energy Transformers
Designed for Performance. Engineered for Reliability. Built for the Future.
